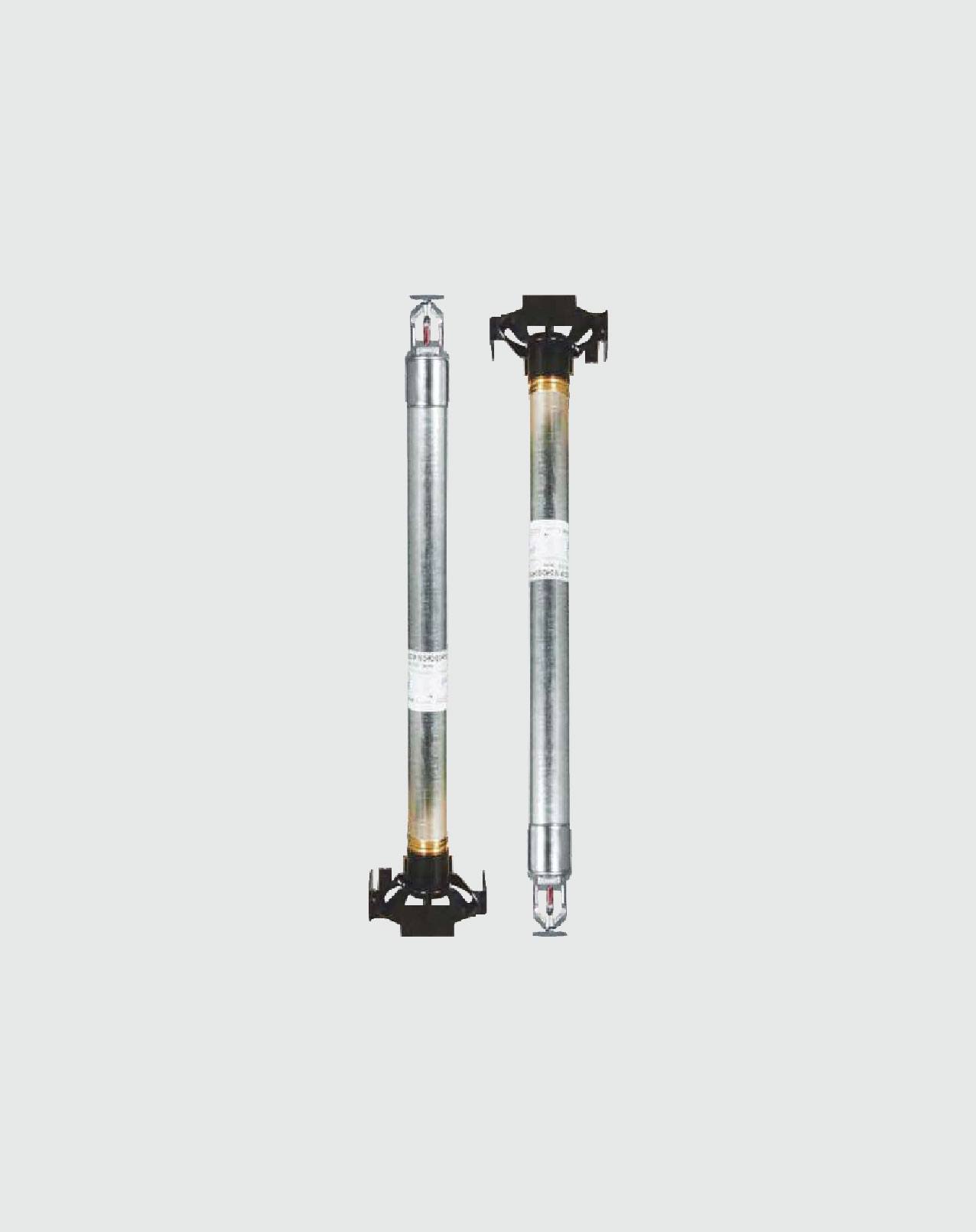

DRY-TYPE SPRINKLER

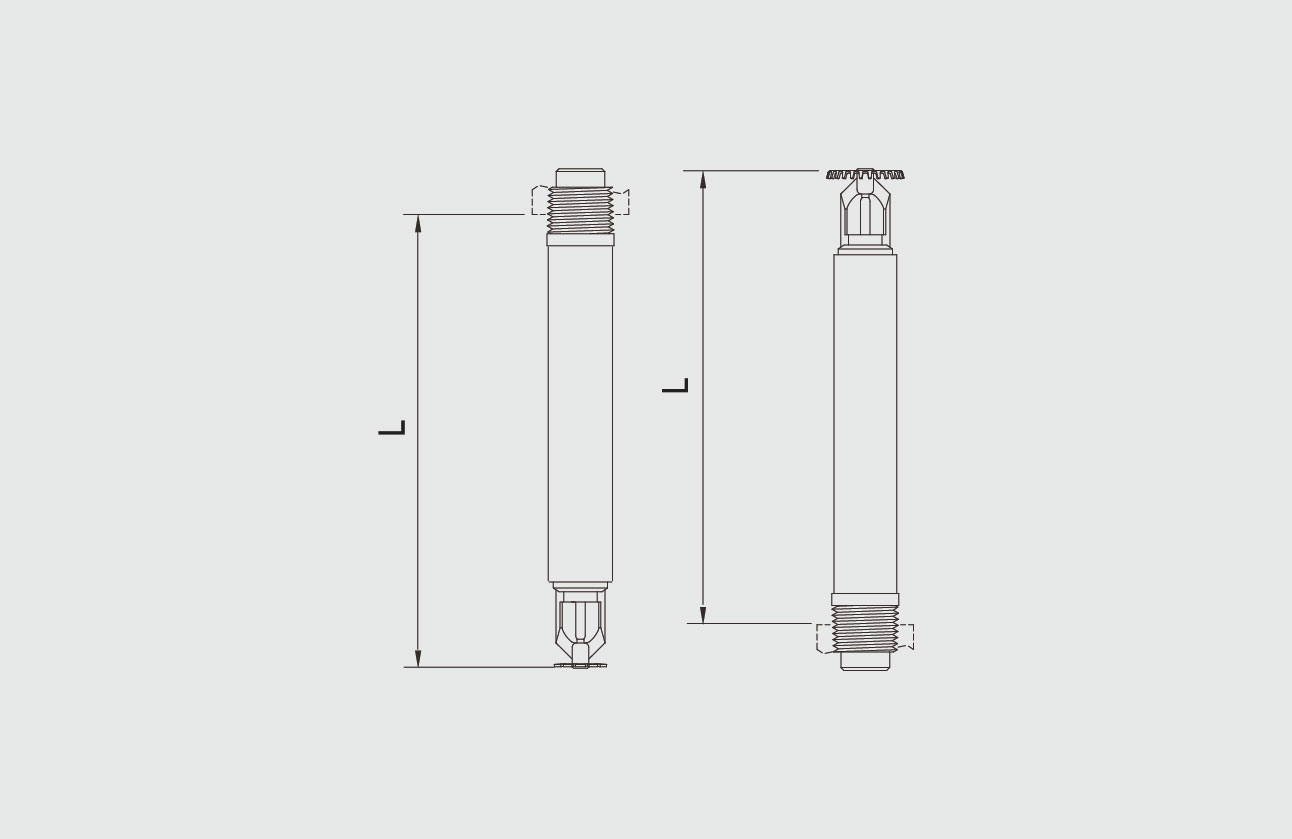

Dry Type Sprinkler At Standard Response With 5 Mm Glass Bulb Has Pendant, Upright, And Horizontal
Sidewall Types. It Is Used On Dry Pipe System That Are Exposed To Freezing Temperatures Or Seasonably
Drained To Avoid Freezing.
Thread:
1" NPT or BSPT
K Factor:
K=5.6
Response:
Standard With 5mm Mass Bulb
Working Pressure:
175 psi (1.21 MPa)
Sprinkler Finish:
Rough Brass / Chrome Plated / White White
Escutcheon:
Polyester / Chrome Plated
Certificate:
UL Listed / FM Approved
Standard:
ANSI / UL 199
